round brush grommet 75mm dia

round brush grommet 75mm dia

Short Description:

The UPFLOOR cable grommet fits into the access floor panel to provide a safe,neat and effective outlet for electrical power leads, telecom cables, data cables and vacuum hoses. The cable grommet fits all UPFLOOR access floor panels and is quick and easy to install, easy to use during servicing and manufactured from a very durable plastic.

The cable grommet can be installed within all UPFLOOR access floor panels whether in a carpeted panel application or a high pressure laminate panel application.


Any requirement of technical details/test report/certificate/new products and etc, Please ask details through company sales by email:

Product Detail

Product Tags

Product Details

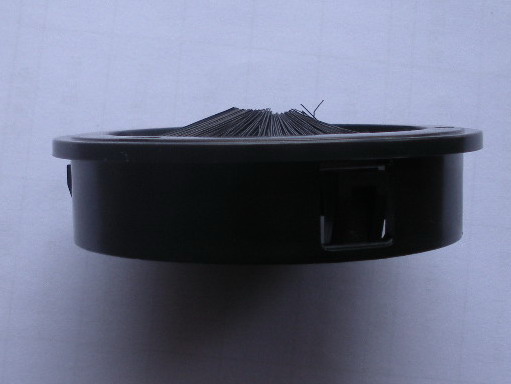

Product Name: Round Grommet

Designed to seal openings in new and existing raised floor cutouts to block bypass airflow and maximize cooling system efficiency.

• UPIN’s round grommet is molded from durable polypropylene with black color


Dimensions and Tile Cutting Requirements Size (W x D x H)
Overall size diameter x height 82 x 20 mm
Product height above the raised floor 4 mm
Maximum cutout size sealed 76 mm
Usable cable area 5671 sq. mm

Sealing Effectiveness:
New design is a more effective method of sealing air flow than using brushes or filament materials alone. The best sealing round grommet available
